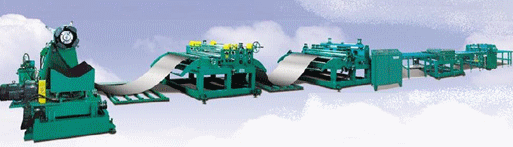

Heavyweight Steel Sheet Roll Forming Line for 0.5 ~ 1.0mm in Steel Sheet Thickness

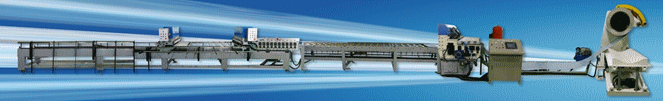

Lightweight Steel Sheet Roll Forming Line for 0.3 ~ 0.5mm in Steel Sheet Thickness

Heavyweight Forming	Lightweight Forming	Specification
Coil Car & Uncoiler	Coil Car & Uncoiler	Uncoiler with Coil Car Loading Capacity : 3, 5, 7.5, 10, 12 ton Type : Hydraulic Mandrel Expanding Drum Expanding & Sliding Structure The Strongest Mechanical Design by Integral Structure
Leveler & Side Trimmer	Non- Basic	Leveller : 4-High Type for Straightening the Steel Sheet Surface or Other Types - In Case of Higher Quality of Steel Sheet, It is not Necessary Side Trimmer : Tooth-Cutting Type - Steel Materials : SKD 11
NC Feeder	Roll Feeder	NC Feeder : Accurate Feeding the Steel Sheet by Micro Detecting Roll Feeder : Knife Cutting by Hydraulic Power
Notching & Shearing	Notching & Shearing	Notching Unit - Cutting the Corners of Left & Right Side for Folding by Hydraulic Press-cutting Chopper - Cutting the Coil into the Necessary Steel Sheet Length by Air Cylinder Knife.
Edge Roll Former		Edge Roll Former - Roller Station : 10 ~ 12 Stations - Gear & Chain Drive by Dual-Plate Stand for Width Adjustment
Twin L-Bender		Twin L-Bender or Mono L-Bender - Type : Hydraulic L Mould Folding - Length Manipulation by Encoder
